TECHNICAL DATA:

• Mechanical speed STROKES/1’ max. 50
• Power absorption KW 3.5
• Air consumption Nl/1’ 150
• Air pressure bar 5÷6
• Gross weight kg ~2100
• Net weight kg ~1600

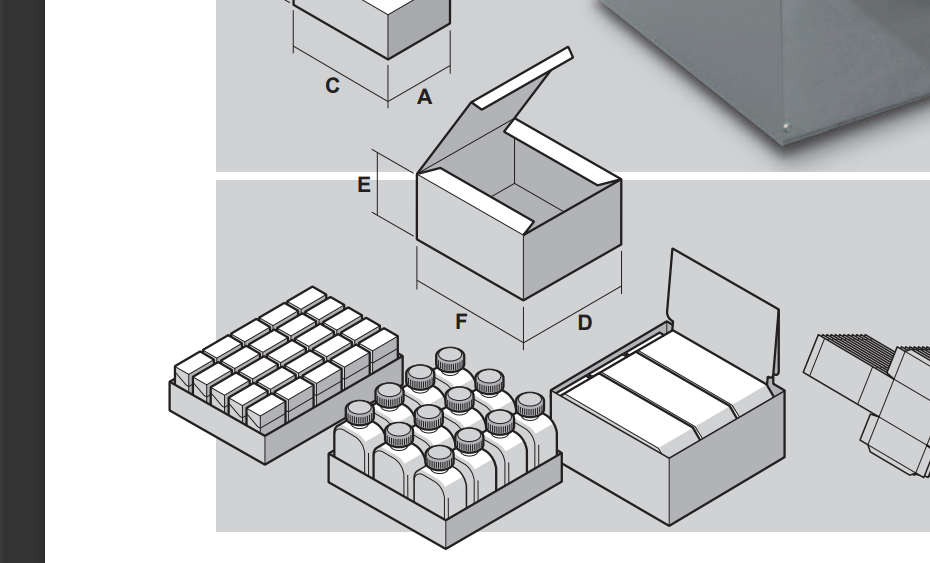

#	Size range	min.	max.
1	A	15	200
2	B	10	100
3	C	50	150
4	D	50	200
4	E	45 (tray with lid) - 25 (tray without lid)	100
4	F	50	200
