TECHNICAL DATA:

• Mechanical speed STROKES/1’ 140
• Power absorption KW 2.3
• Air consumption Nl/1’ 900
• Air pressure bar 5÷6
• Gross weight kg ~1000
• Net weight kg ~800

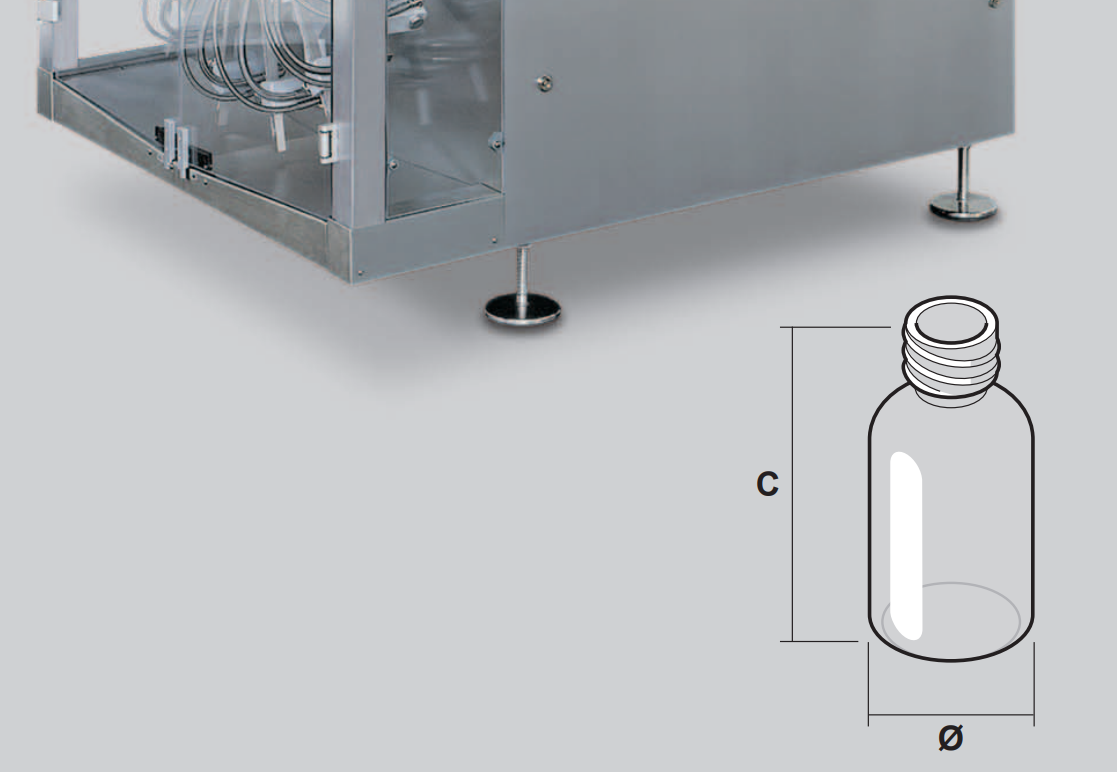

#	Size range	min.	max.
2	Ø	20	80
3	C	30	180
